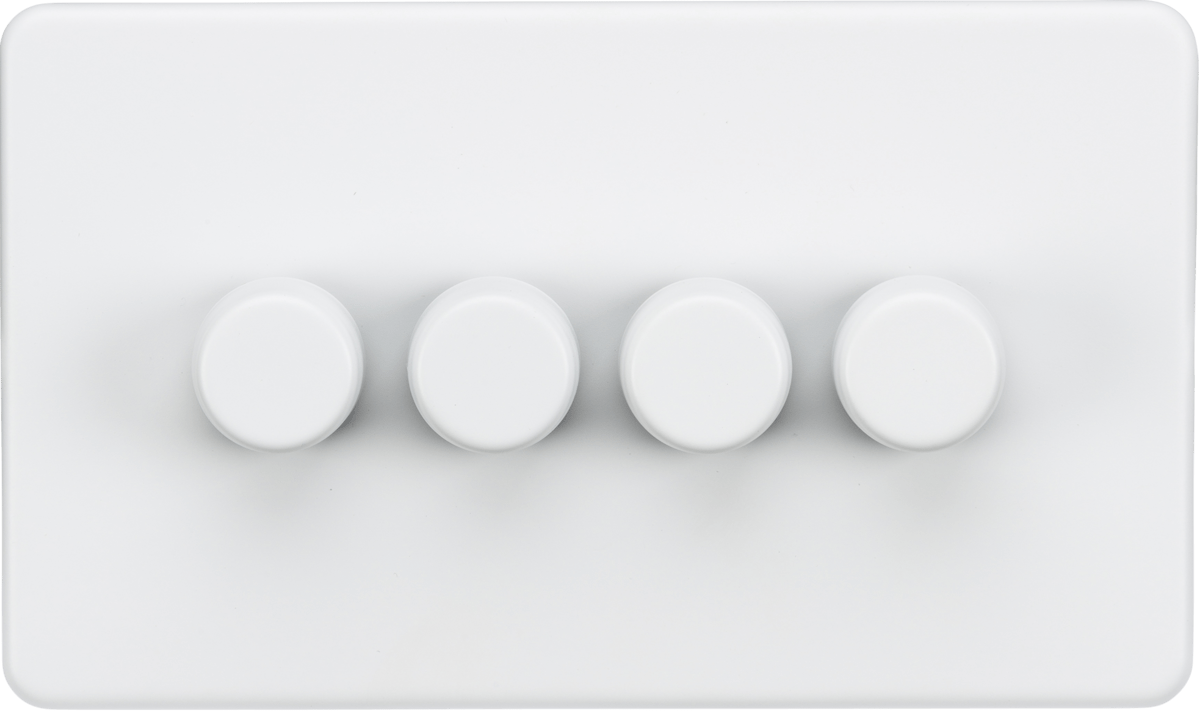

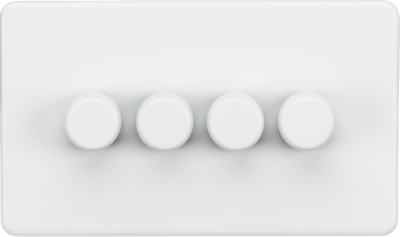

Knightsbridge Screwless Matt White 4 Gang 2-way 10-200W (5-150W LED) Intelligent Dimmer

£65.76 £65.76

Description

Perfect finishing touch to any modern home, flawless Screwless low profile metal design with matching dimmer caps.

  • Switch between Trailing-edge and Leading-edge modes, making this a highly compatible dimmer solution.
  • Trim, switch modes and reset dimmer all from the front of the plate via the control knob – future proofing and making it easy to reset, re-adjust if there is a change of fitting or lamps
  • Push On/Off, rotary dimming action
  • Preset in Trailing-edge mode
  • 10-200W (5-150W LED)
  • Suitable for use with dimmable lamps only
  • Overload and Overheat protection
  • Fitted with an Inrush Current Limiter (ICL)

NB: DO NOT USE IN A MIXED ENVIRONMENT i.e. difference brands of lamps or different wattages of lamps in same fitting

Specifications

MLA PART CODE SF2194MW
DESCRIPTION 4G 2-way 10-200W (5-150W LED) Intelligent dimmer – Matt White
NET WEIGHT (KG) 0.368
FINISH Matt White
DIMENSIONS (MM) Height – 87.5
Width – 147.5
Projection – 4.3
Recessed Depth – 21.3
MINIMUM MOUNTING BOX DEPTH 25mm
CONSTRUCTION Construction – SPCC Steel
CLASS I
IP RATING IP20
INPUT VOLTAGE 230V 50Hz
SWITCH FUNCTION 2-Way
EARTH TERMINAL Yes
LOAD/MAX. LOAD 10-200W (5-150W LED) Max. 15 Lamps per dimmer
TERMINAL TYPE Screw
TERMINAL CAPACITY 2 x 1.0mm² or 2 x 1.5mm²
BUILT-IN TECHNOLOGY Intelligent – Switchable Leading Edge and Trailing Edge (default)
ADDITIONAL FEATURES Trim, switch modes and reset dimmer all from the front of the plate via the control knob
WARRANTY 2year(s)
ORIGIN OF MANUFACTURE China
DECLARATION OF CONFORMITY (HELD ON FILE) Yes
EAN 5056270835489
