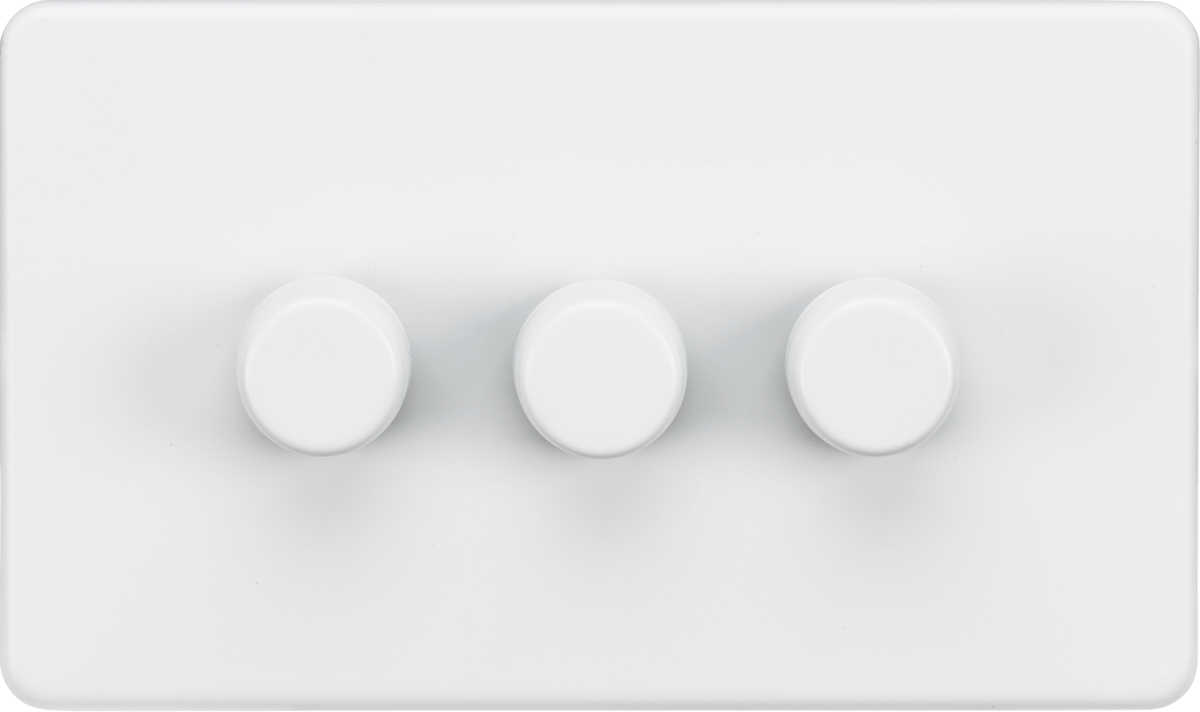

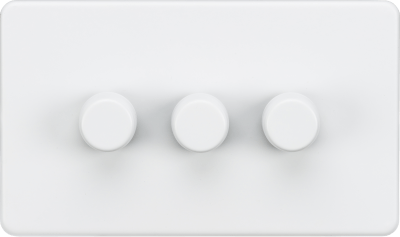

Knightsbridge Screwless Matt White 3 gang 2-way 10-200W (5-150W LED) Intelligent dimmer

Description

Perfect finishing touch to any modern home, flawless Screwless low profile metal design with matching dimmer caps.

Switch between Trailing-edge and Leading-edge modes, making this a highly compatible dimmer solution.
Trim, switch modes and reset dimmer all from the front of the plate via the control knob – future proofing and making it easy to reset, re-adjust if there is a change of fitting or lamps
Push On/Off, rotary dimming action
Preset in Trailing-edge mode
10-200W (5-150W LED)
Suitable for use with dimmable lamps only
Overload and Overheat protection
Fitted with an Inrush Current Limiter (ICL)

NB: DO NOT USE IN A MIXED ENVIRONMENT i.e. difference brands of lamps or different wattages of lamps in same fitting

MLA PART CODE	SF2193MW
DESCRIPTION	3G 2-way 10-200W (5-150W LED) Intelligent dimmer – Matt White
NET WEIGHT (KG)	0.337
FINISH	Matt White
DIMENSIONS (MM)	Height – 87.5 Width – 147.5 Projection – 4.3 Recessed Depth – 21.3
MINIMUM MOUNTING BOX DEPTH	25mm
CONSTRUCTION	Construction – SPCC Steel
CLASS	I
IP RATING	IP20
INPUT VOLTAGE	230V 50Hz
SWITCH FUNCTION	2-Way
EARTH TERMINAL	Yes
LOAD/MAX. LOAD	10-200W (5-150W LED) Max. 15 Lamps per dimmer
TERMINAL TYPE	Screw
TERMINAL CAPACITY	2 x 1.0mm² or 2 x 1.5mm²
BUILT-IN TECHNOLOGY	Intelligent – Switchable Leading Edge and Trailing Edge (default)
ADDITIONAL FEATURES	Trim, switch modes and reset dimmer all from the front of the plate via the control knob
WARRANTY	2year(s)
ORIGIN OF MANUFACTURE	China
DECLARATION OF CONFORMITY (HELD ON FILE)	Yes
EAN	5056270835403
