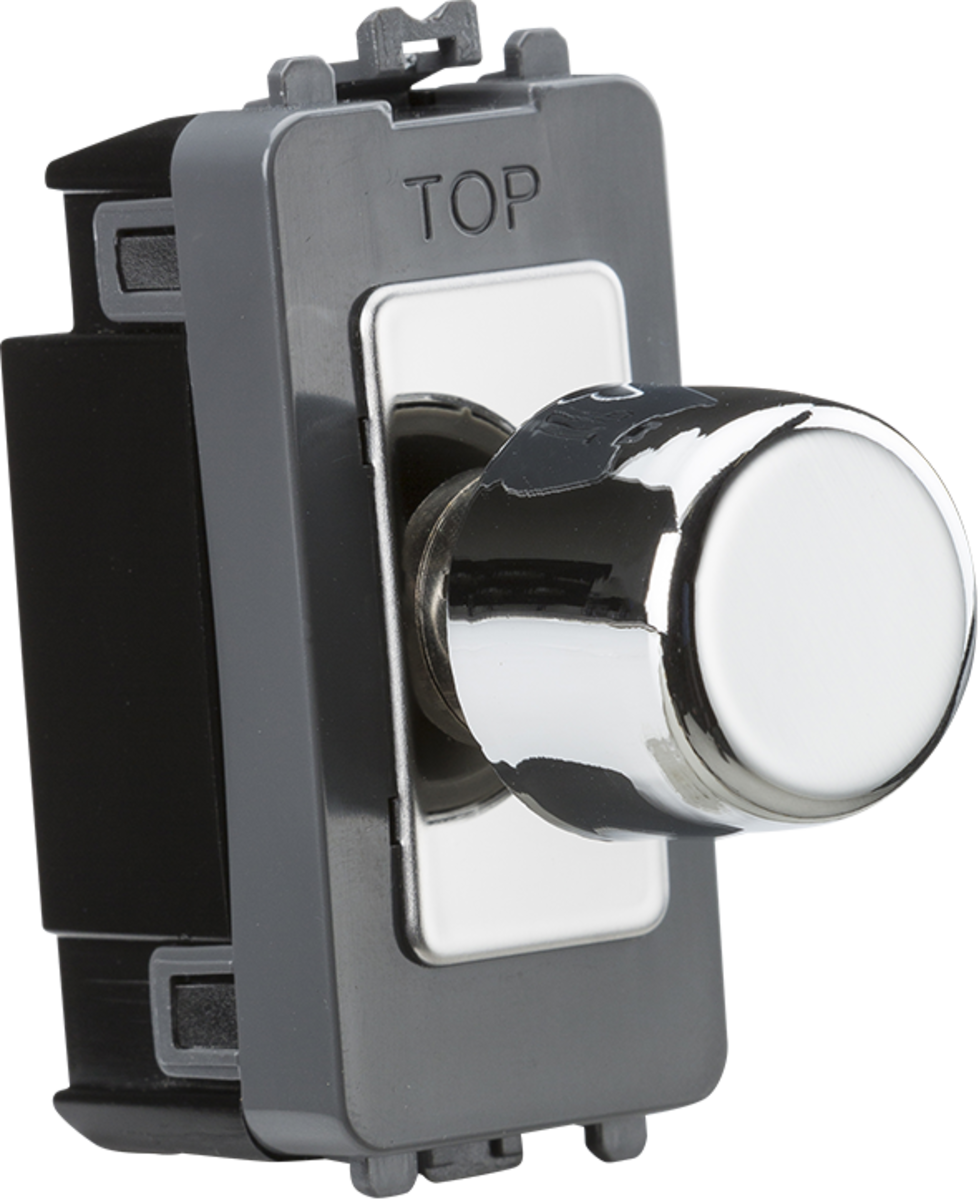

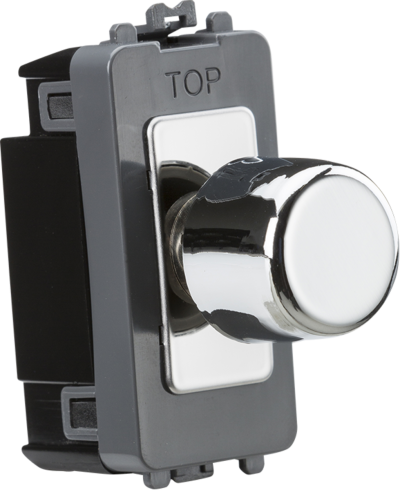

Knightsbridge Polished Chrome 1G 2-way 10-200W (LED 10-100W) Trailing Edge Dimmer Module

SKU GDM015PC Categories , ,
EAN: 5055832964025

£11.69 £11.69

Description

2-way switching, rotary dimming, push On/Off, 10-200W (LED 10-100W) rated. Part of the Knightsbridge Grid system. Module simply clips into position from the front of the mounting frames (sold separately)

GLS / Mains voltage halogen/ LV Halogen with dimmable magnetic transformer/ LV Halogen with electronic transformer: Min. 10W ~ Max.200W

LED dimmable lamp /LED dimmable driver : Min. 10W ~ Max. 100W

*To operate with LED lamps, the lamp or driver/control gear must be compatible i.e. dimmable. This unit is not suitable for non-dimmable products.

Please check with lamp manufacturer for compatibility

NB: WE RECOMMEND A MAXIMUM OF 10-12 LAMPS PER GRID DIMMER TO PREVENT ANY INRUSH CURRENT PROBLEMS

Product Specifications

MLA PART CODE GDM015PC
DESCRIPTION 1G 2-way 10-200W (LED 10-100W) trailing edge dimmer module – polished chrome
NET WEIGHT (KG) 0.036
FINISH Polished Chrome
DIMENSIONS (MM) Height – 56.3
Width – 25
Projection – 54
Recessed Depth – 23
MINIMUM MOUNTING BOX DEPTH 35mm
CONSTRUCTION Construction – ABS
Construction 2 – & steel
IP RATING IP20
INPUT VOLTAGE 230V 50Hz
SWITCH FUNCTION 2-Way
LOAD/MAX. LOAD 10-200W (10-100W LED)
TERMINAL CAPACITY 2 x 1.0mm² or 2 x 1.5mm²
BUILT-IN TECHNOLOGY Trailing Edge
WARRANTY 2year(s)
MANUFACTURED IN ACCORDANCE WITH BS EN 60669-2
ORIGIN OF MANUFACTURE China
DECLARATION OF CONFORMITY (HELD ON FILE) Yes
EAN 5055832964025
