£19.02 £19.02

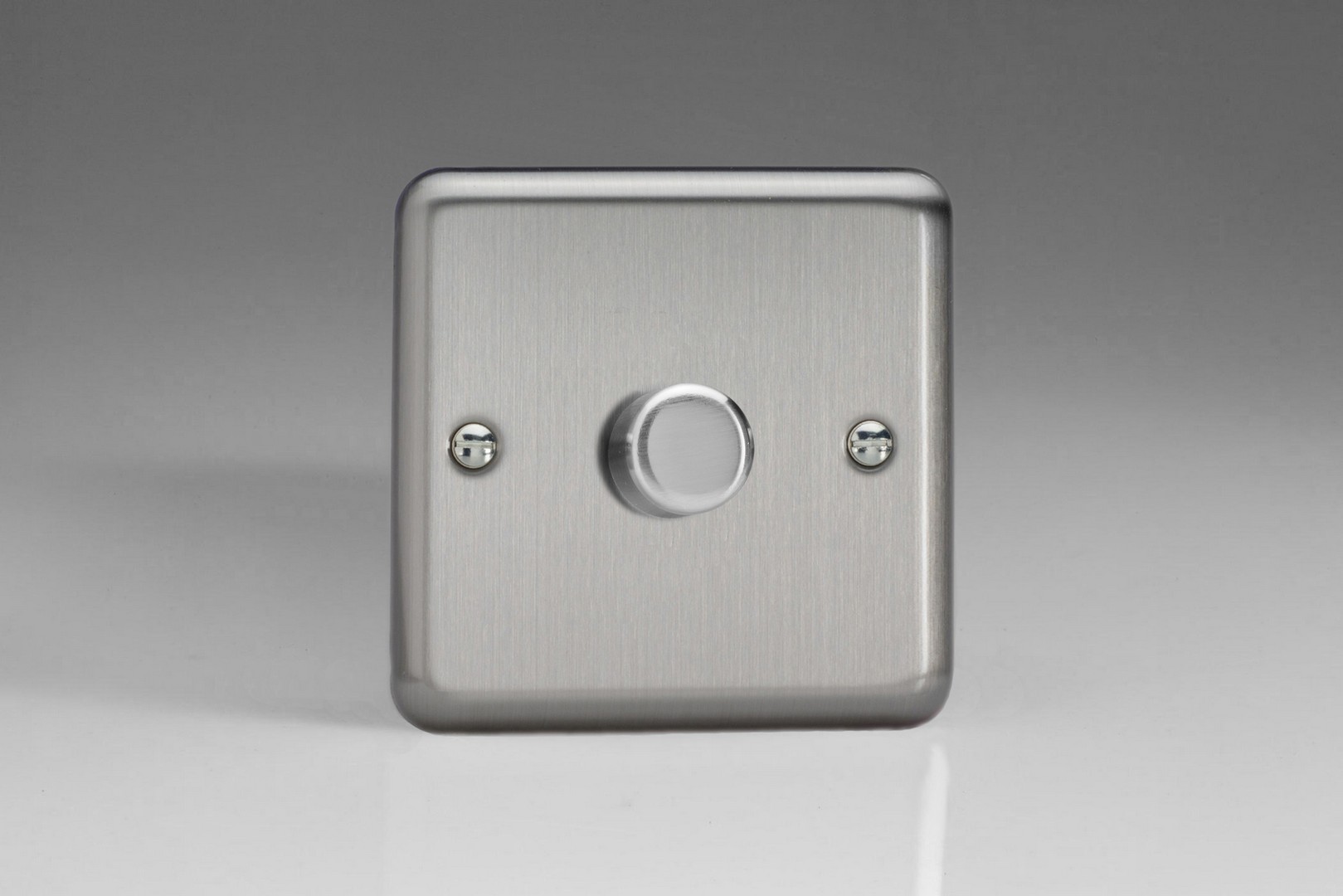

Widest Compatibility: Our V-Pro LED dimmer series comprises programmable intelligent dimmers with a choice of dimming modes for the widest compatibility. All V-Pro dimmers offer superior dimming technology to deliver the best possible dimming performance from an LED load.
Optimise Performance: To enhance compatibility with the ever-increasing range of lighting options now available to customers, V-Pro dimmers are programmable to offer a choice of dimming modes. In addition, users can set the minimum load level for the dimmer to optimise the dimming range of a particular lighting load. Additional features refine performance to provide a stable light output across all brightness levels, both when the lights are switched on and during operation. The V-Pro series also features a soft-start feature to improve the life span of both the LED lamps and the dimmer.
Functionality: Standard V-Pro dimmers have a push-on/push-off switch action with rotary dimming. You can change the driving modes and adjust the minimum brightness with pushes of the dimmer control and using signals from the lamps. You can view the programming instructions on the dimmer leaflet or, alternatively, you can view our video tutorial. V-Pro dimmers are designed to control LED lighting loads requiring trailing-edge or leading-edge control with options from 0W-120W and from 0W-300W. Keep V-Pro settings safe including minimum and maximum brightness, mode and drive function settings with the new Child Lock feature.
We also have a range of Smart Rotary dimmers for use with multi-Way circuits with Master dimmers and Supplementary Controllers. You can find information on these below. See the V-Pro Smart Supla dimmer that’s compatible with Wi-Fi and Smart Home Applications here.
Versatile Dimming: V-Pro series dimmers are designed for use with dimmable LEDs but can also be used to control dimmable electronic transformers and some dimmable CFLs (using mode 3). Ratings for each type of load can be found on individual product datasheets. Find product datasheets using our product configurator tool.
For best results with low voltage lighting use VARILIGHT electronic transformers. There is no limit on the number of transformers you can use as long as you keep within the maximum rating of the dimmer. VARILIGHT electronic transformers are suitable for controlling 12V a.c. rated LEDs (MR16). V-Pro dimmers are not suitable for wire-wound “toroidal” transformers.
For more information on compatibility, please refer to our dimmer compatibility guide.
Range: Classic
Finish: Matt Chrome
Product Category: LED Dimmers
Insert/Knob Colour: Brushed Steel Knob
Barcode: 5021575591064
Dimensions: 88x88x47mm
Faceplate Depth: 7mm
Net Weight: 146g
Gross Weight: 148g
Fixing Centres: 60.3mm
Depth from Mounting Face: 17.7mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: LED; 120W
Maximum Current Rating: 1.3A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
