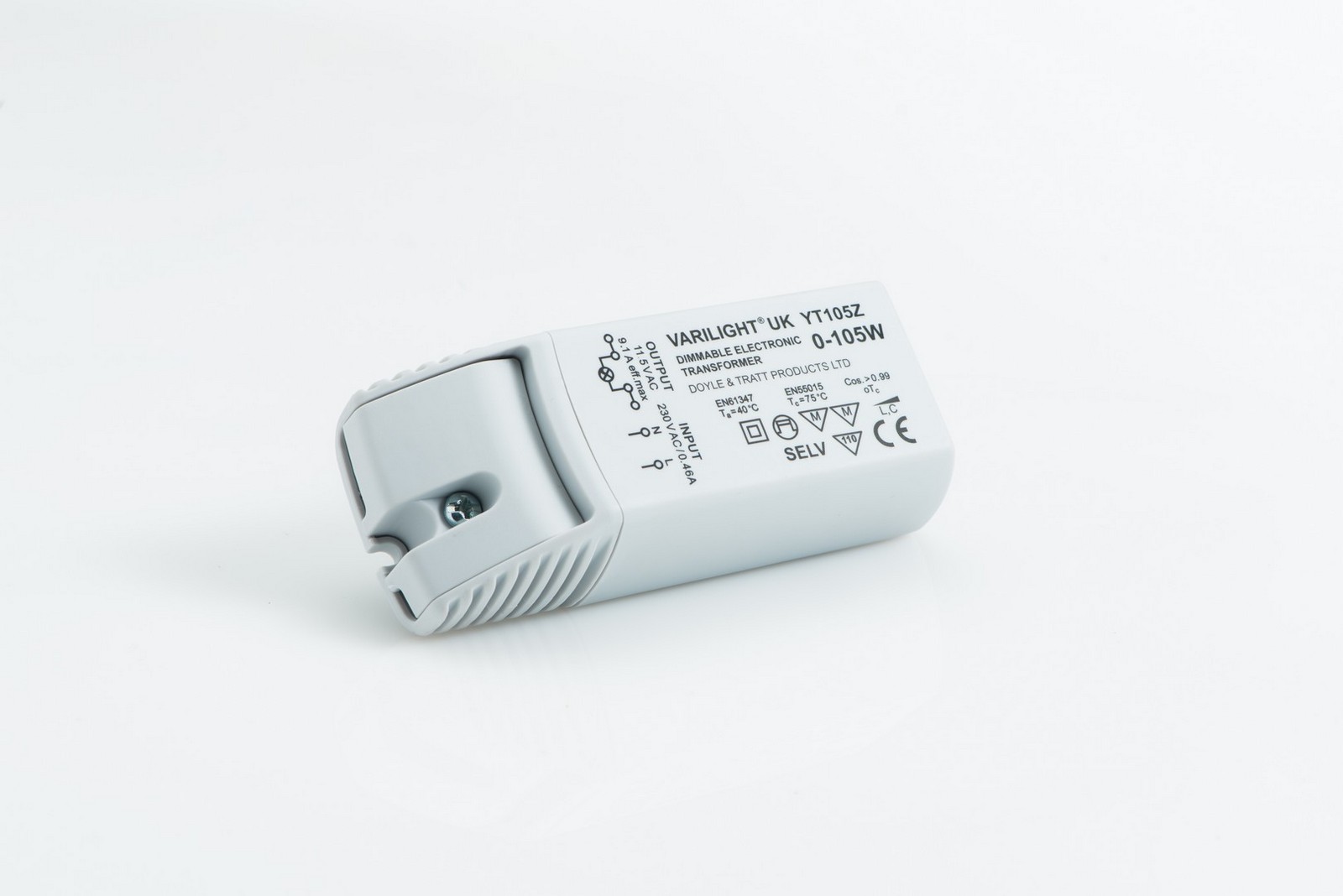

0-105VA Dimmable Low Voltage Lighting Transformer (with Terminals)

SKU YT105Z Categories ,
EAN:

£16.56 £16.56

Description

Soft start gently brings lights up to full brightness when you switch on and extends lamp life. Auto-resetting overload protection and over-temperature. 1 x pair of input terminals and 2 x pairs of output terminals. Short circuit protection – IP20. No minimum rating.

Product Category: Electronic Transformer

Barcode: 5021575960952

Dimensions: 108x44x33mm

Net Weight: 123g

Gross Weight: 125g

Operating Voltage: 230v 50Hz

Maximum Load Rating: 105W

Maximum Current Rating: 230V AC: 0.46A / 11.5V AC: 9.1A

Terminal (Live) Diameter: 2.6mm; Capacity: 2 x 1.5mm²

Terminal (Neutral) Diameter: 2.6mm; Capacity: 2 x 1.5mm²
